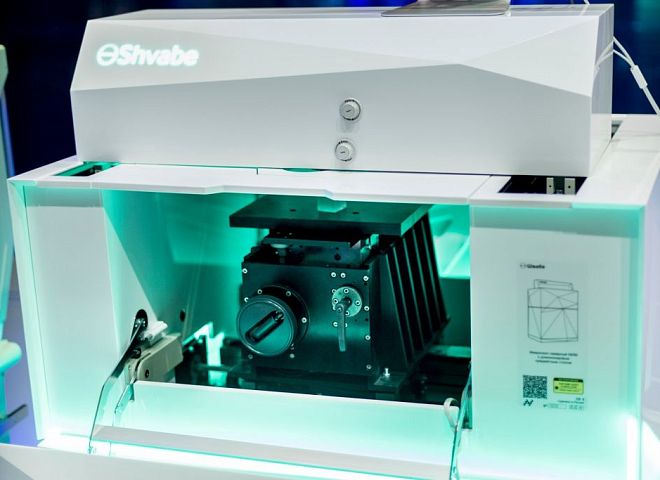

The product is designed to examine a living cell with thousandfold optical magnification

Manufacturer – Shvabe holding

The instrument is one of the world’s best microscopes with a nanometer-resolution extra flat x-y workpiece table and has a wide range of applications from medicine to precision engineering, optical industry, materials science and aerospace sector.

Uniqueness of the MIM-340 is in its thousandfold optical magnification for cell examination with a maximum resolution up to 0.1 nm vertically and up to 10 nm in the XY plane. Moreover, the test item may be measured in real time at a rate of 3 frames per second. The microscope offers analysis of specifically a living cell without using dye agents and damaging the test item. This approach is very important for medicine and biotechnology.

Key advantages of the MIM-340

• Provides a full 1280 х 1024 pixel frame in just 0.3 sec.

• Non-contact measurements, user-friendliness and metrological reliability of measurements.

• Visualization of an optically anisotropic microstructure region less than 100 nm in size.

• Nanoscale dynamics imaging and “nano cinema” recording.

Optical magnification – 1000 х

Field of view – 7 to 150 µm

Vertical resolution – 0.1 nm

XY resolution – 100 to 10 nm

Frame dimensions – 1024 х 1024 pixels

Frame rate – 3 to 30 FPS

Light source – 405 nm laser
